Automatic carton sealing for end-of-line packaging systems
The LPS DT-5 Automatic Case Sealer is designed for automatic closing and sealing of cartons with adhesive tape. The machine folds the top flaps and seals the carton from the top and bottom, ensuring a stable and repeatable sealing process.
The DT-5 can work as a standalone unit or as part of a complete end-of-line automation system. It helps reduce manual work, improve packing consistency and keep the packaging process smooth and controlled.
Key features
Automatic top and bottom tape sealing of cartons
Automatic folding and closing of the top flaps
Press-to-run function for fast and easy machine setup
Protective covers equipped with Keyence/Pilz safety interlocks
Automatic start/stop controlled by light barriers to reduce energy consumption
Stable and repeatable carton sealing process
Easy access for operation, adjustment and maintenance
Technical data:
Tape width: 48 / 60 / 75 mm
Minimum carton size: 150 × 200 × 130 mm
Maximum carton size: 500 × 600 × 500 mm

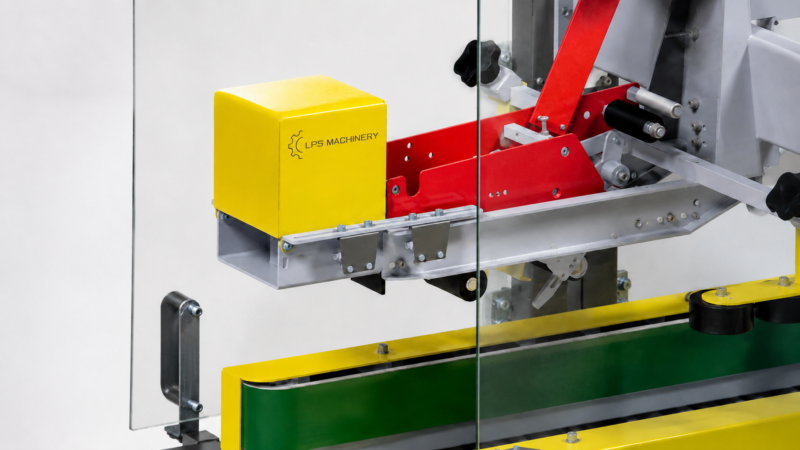

Easy Box Opening Equipment:
Safe carton opening without a knife
The Easy Box Opening Module allows the end customer to open the carton without using a knife. This helps reduce the risk of damaging the product inside the box and makes the unpacking process safer and more convenient.
The attachment is activated automatically. The start and end positions can be adjusted separately, allowing the system to be matched to the carton format and sealing requirements.

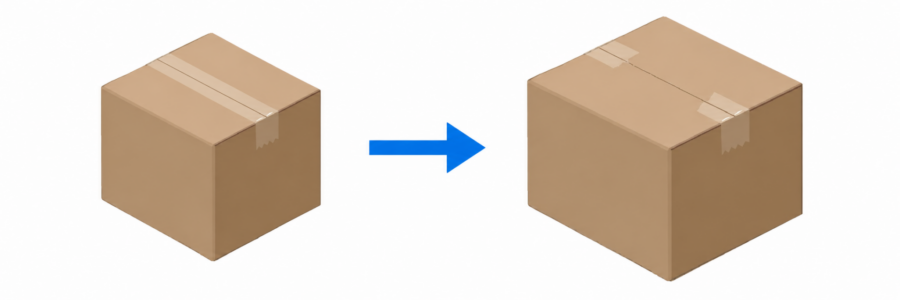

Function
Closed carton → easy opening without a knife
Key benefits
Safe carton opening without using a knife
Reduced risk of product damage during opening
Automatic activation of the opening attachment
Separate start and end position adjustment
