LPS DIANA 45/90- FULL RENOVATION

LPS DIANA 45/90- FULL RENOVATION

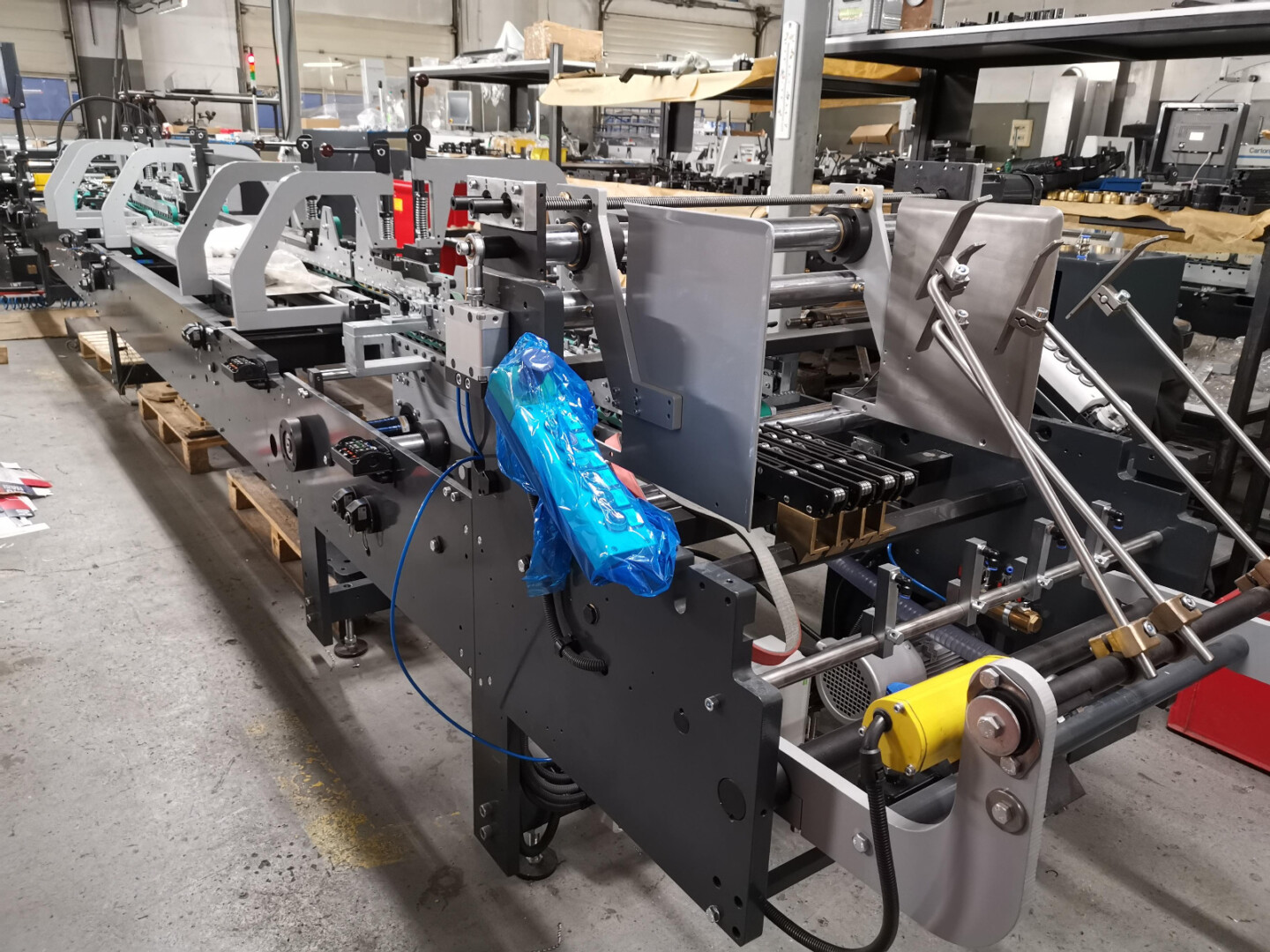

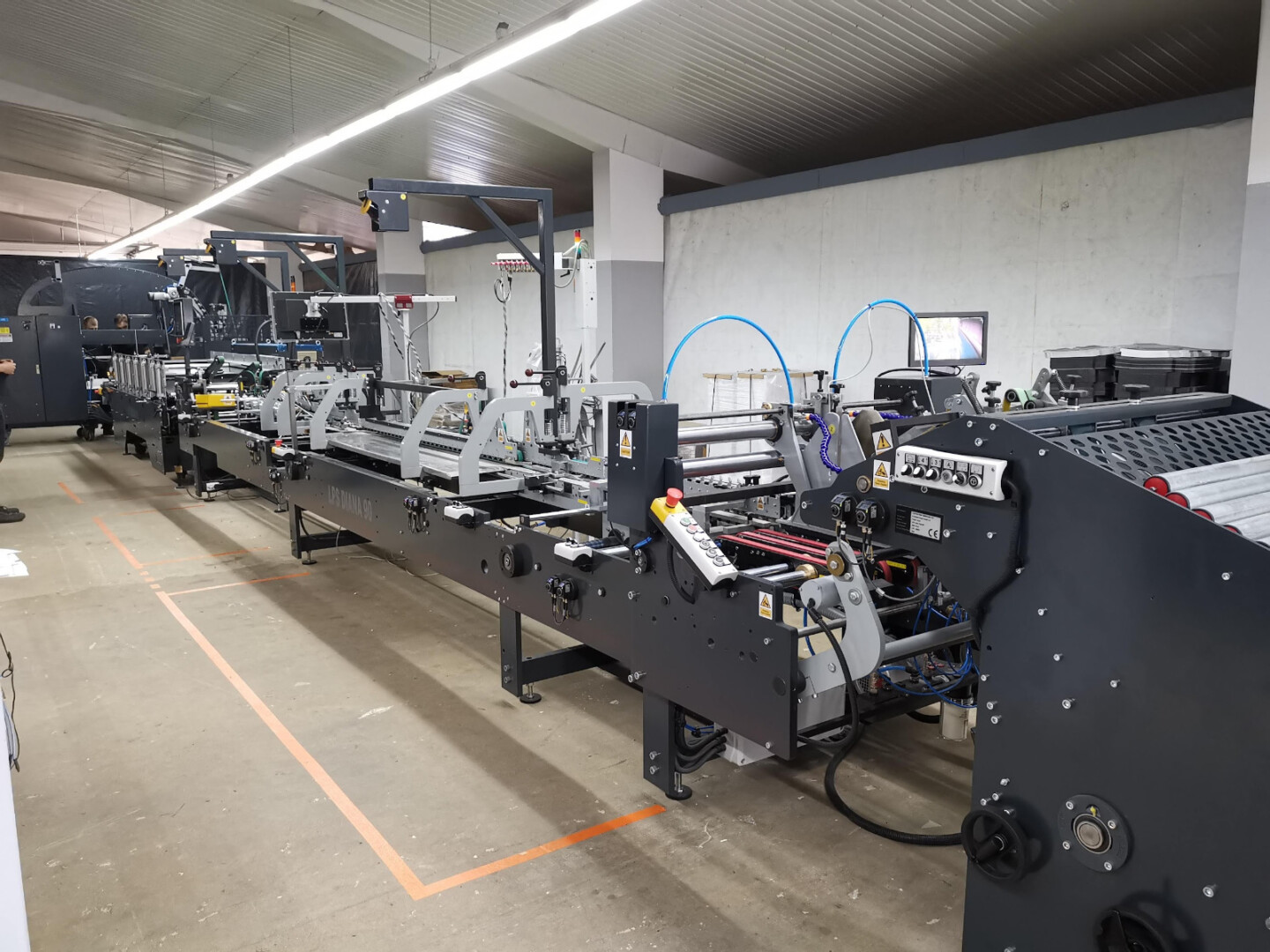

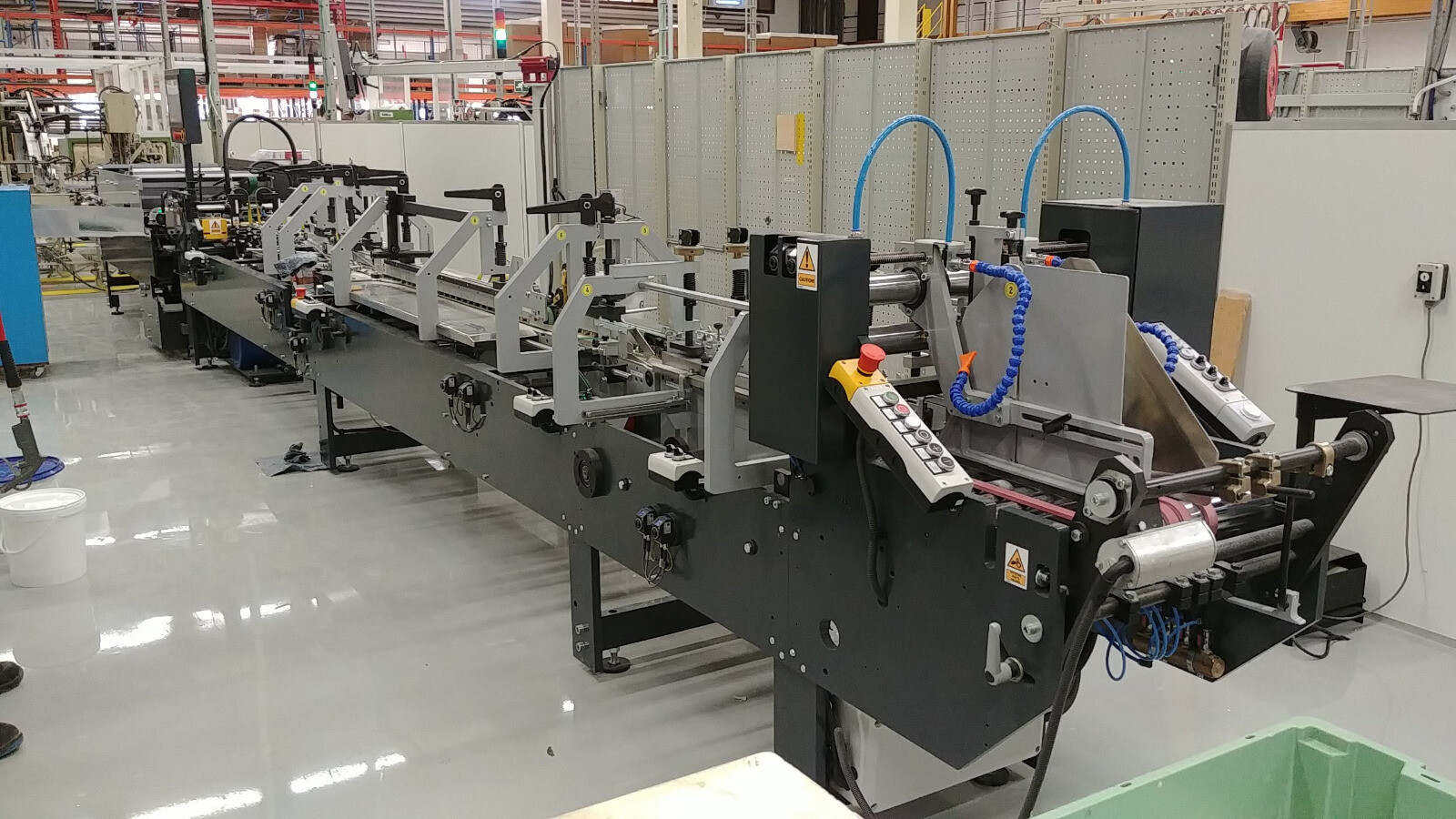

MACHINES AFTER FULL RENOVATION!

We are pleased to present you our latest offer for the LPS DIANA 45 and LPS DIANA 90 foldergluer. These are strong, reliable, fast machines, available in the Straight Line Crashlock and 4 Corner versions. Machines are after full mechanical overhaul, with additional modules like aligning module, all new motors, shafts rollers and control electronics, big touch screen, motorized carriers and autoset.

Key features of LPS DIANA machines:

Versatility of sizes:

LPS Diana 45: min. format 48 mm, max. format 570 mm LPS Diana 90: min. format 48 mm, max. format 900 mm Max belt speed 500m/min

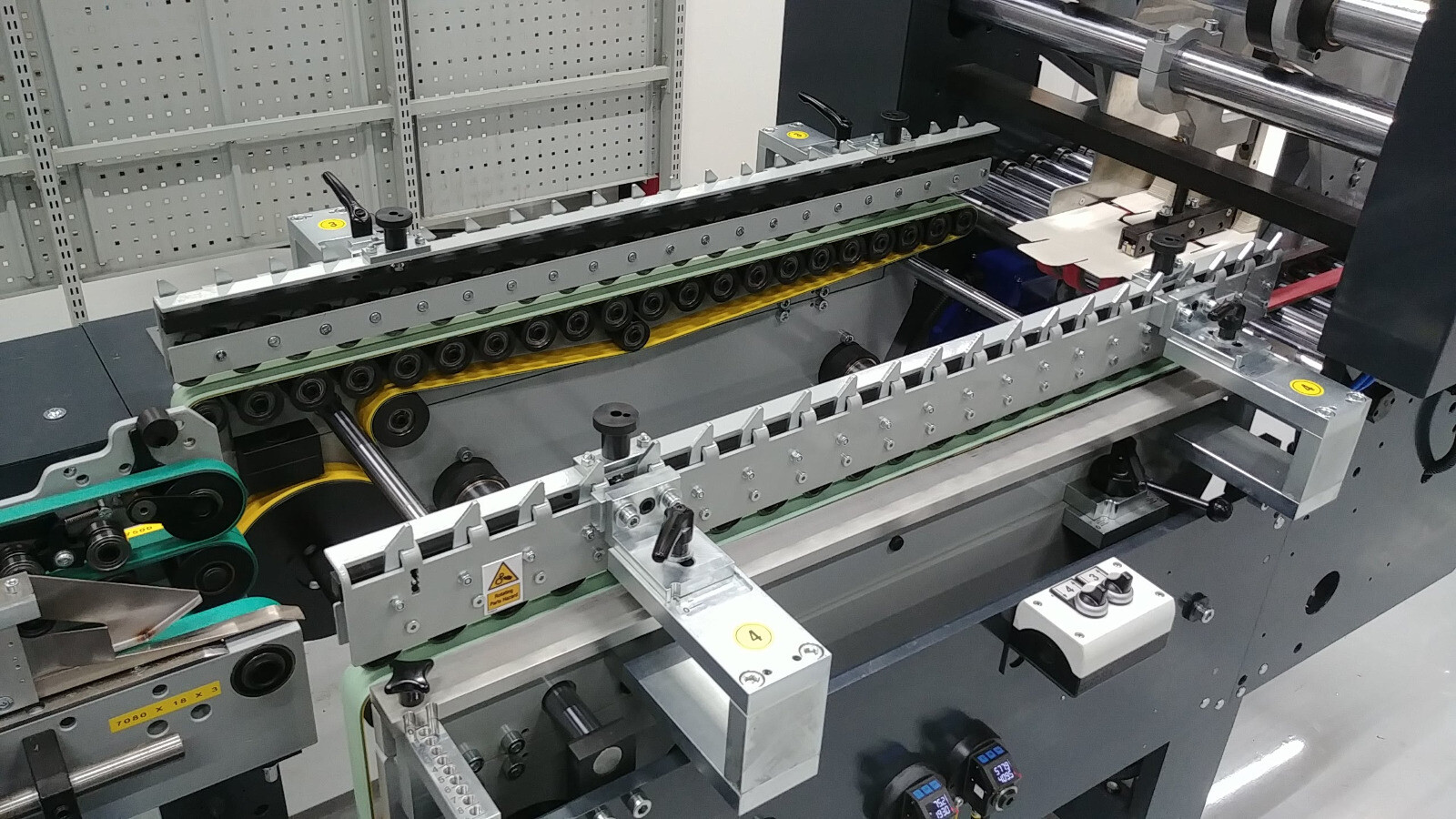

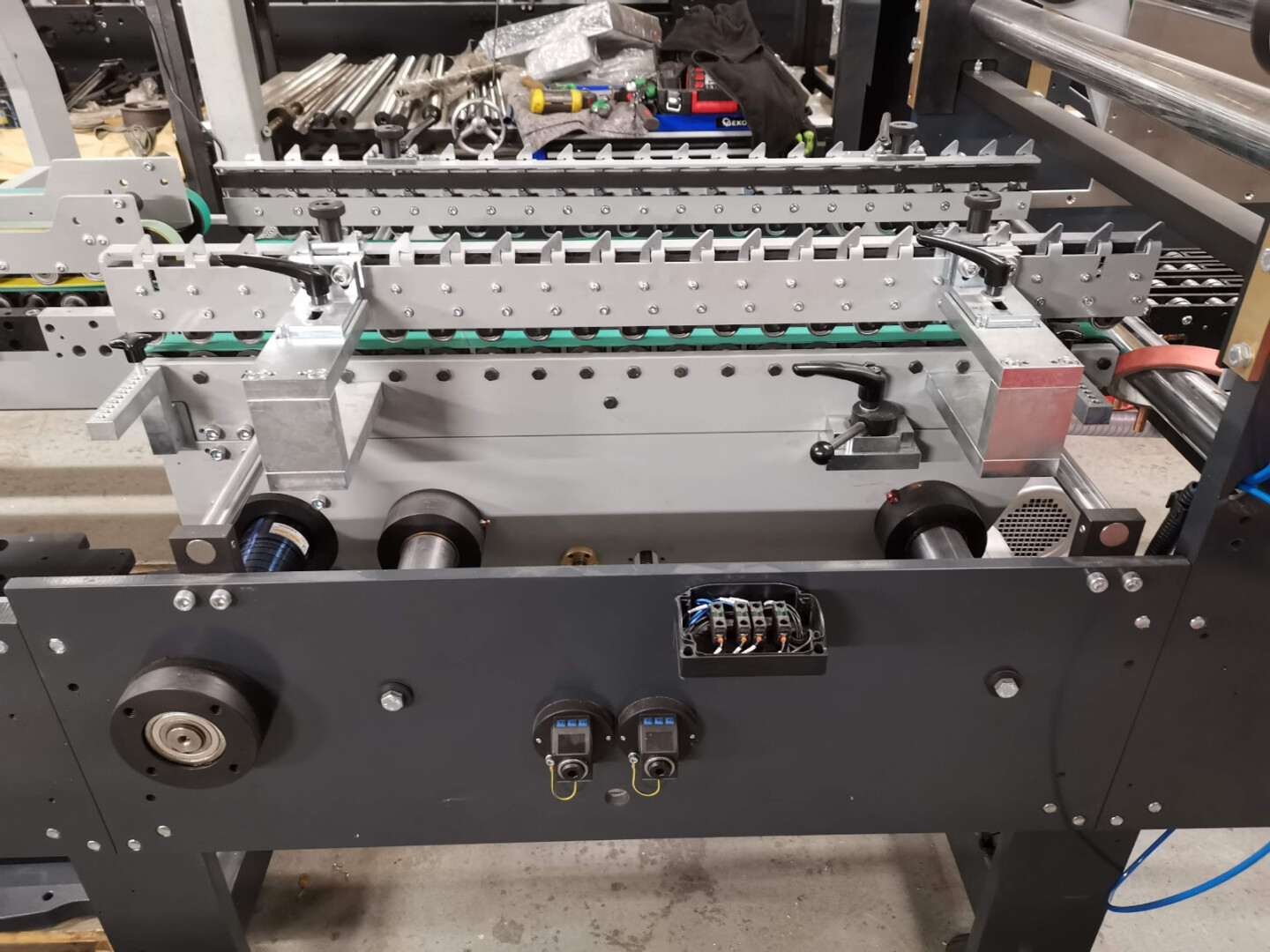

Advanced technologies: Additional aligning module

Feeder module driven by a separate electric motor Transfer module driven by a separate electric motor Motorized carrier and AUTOSET

Pneumatically lifted top of the feeder

Upper conveyors with LPS CLAMPING SYSTEM for easy assembly of equipment Easy belt tensioning and adjustment of the conveyor position

Modern drives and electronics, Energy-saving IE3 class motors controlled by ABB inverters and SIEMENS PLC

Glue wheel drive with separate motor, LPS GP AUTO function – keeps glue fresh during machines stops

Simple operation:

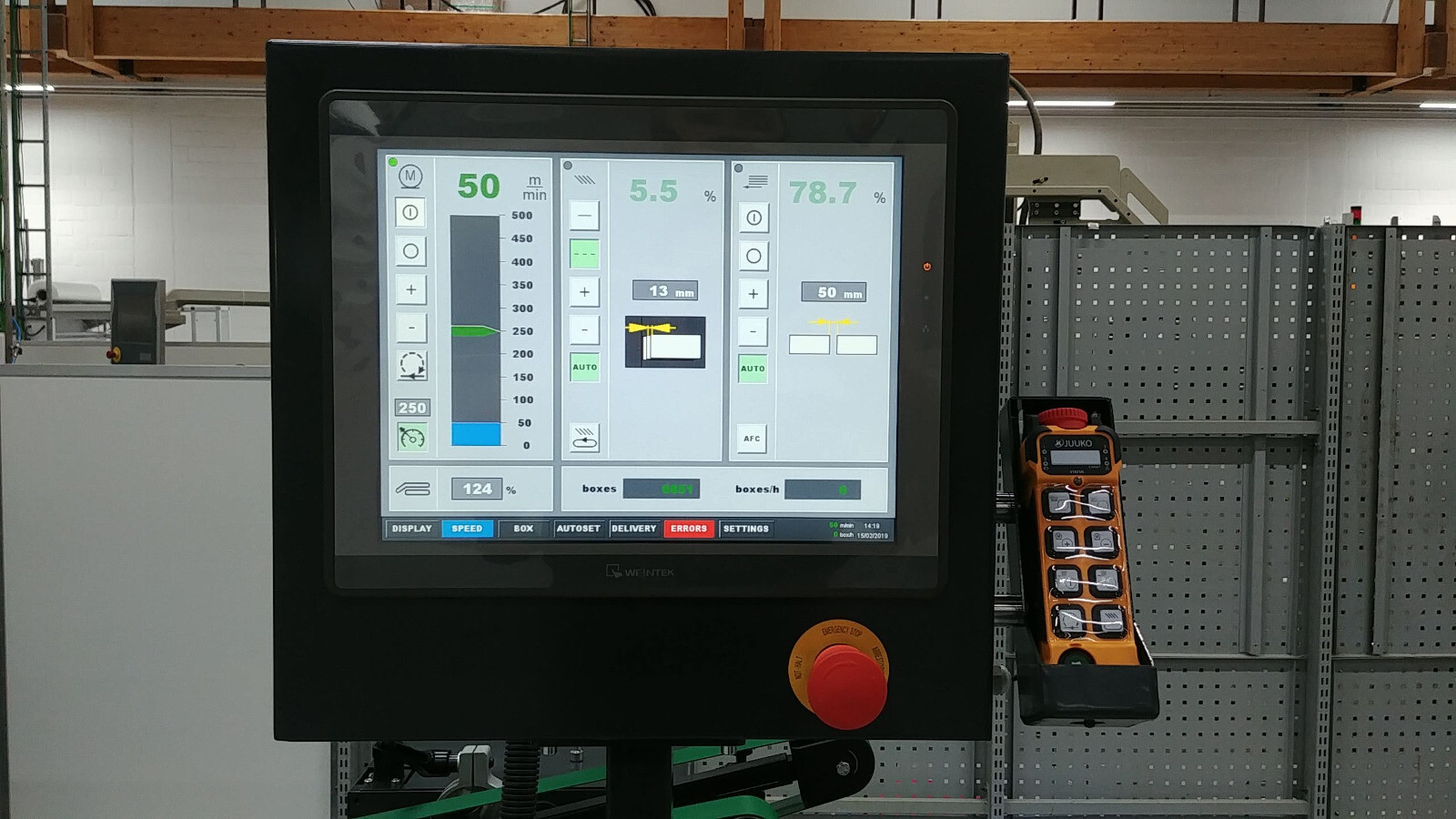

A large touch screen for machine control and a database of saved jobs

Easy adjustment of the carriers positions – motorized carrier controlled by buttons or Autoset Modern style top carrier with easy adjustment of end rollers and new style of final fold closing rollers similar to Bobst Alpina style.

Why is it worth investing in LPS DIANA?

Efficiency: Automated processes significantly increase production change over time – Autoset Flexibility: Possibility of adjustment to various carton formats and types, easy additional equipment installation thanks to LPS CLAMPING SYSTEM

Quality: Additional aligning module ensure high production quality and easy adjustment Remote service – modern remote diagnosis and problem solving

30mm width robust machines frames guarantee no wibrations, stable production and long lasting lifetime.

We encourage you to contact us!
